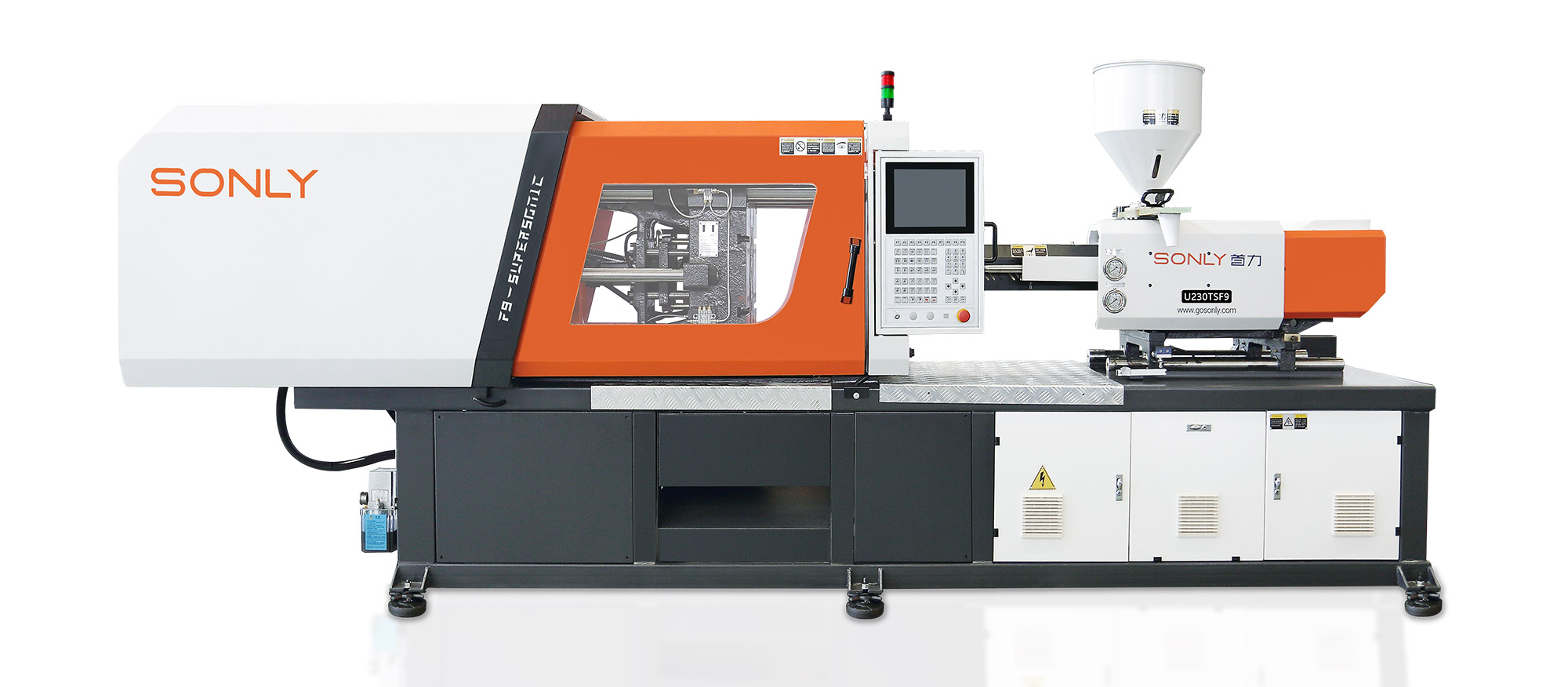

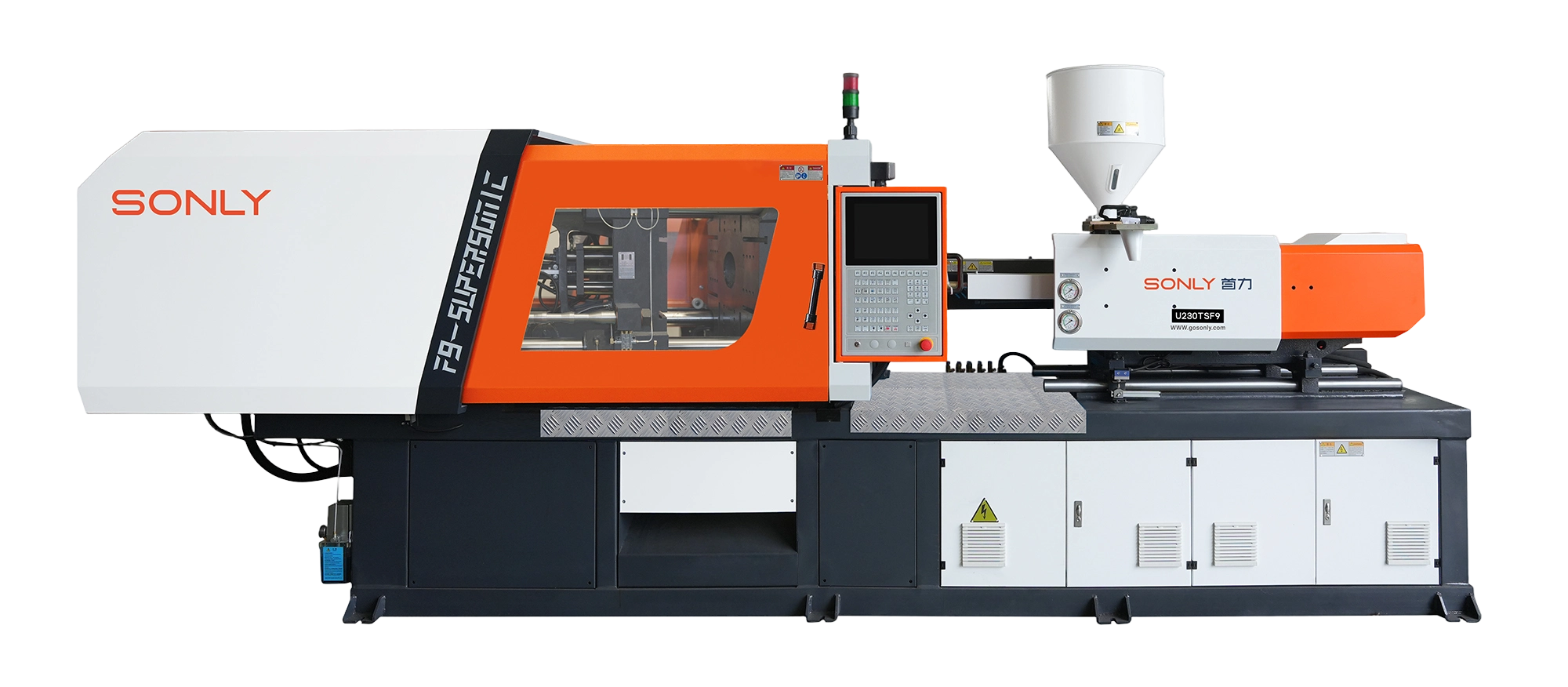

U230TSF9

The F9 series of injection molding machine is designed from extremely austere concept, with the main purpose of "One machine with multi function, comprehensive usage", it has a novel appearance, compact structure and excellent performance.

Zhejiang Sonly Intelligent Equipment Co.,ltd

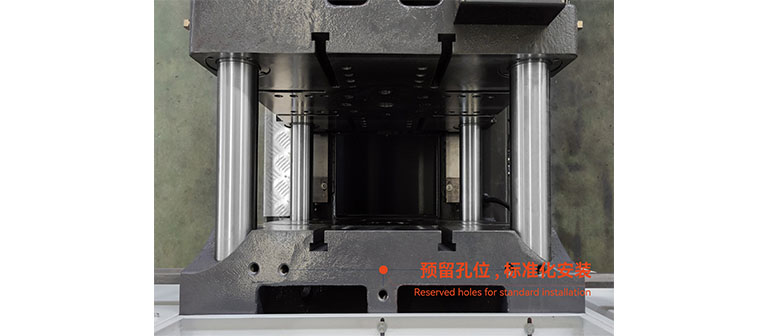

1.MORE EFFICIENT WIDE TEMPLATE DESIGN,SAVE COST FOR BIG SIZE MOLDS
F9 series machine tie bar space of larger compared with ordinary machine in same model, which has bigger space for mould. For example, the same product if by ordinary injection molding machine needs 168 tons, while by SONLY F9 supersonic series only need 140 tons.

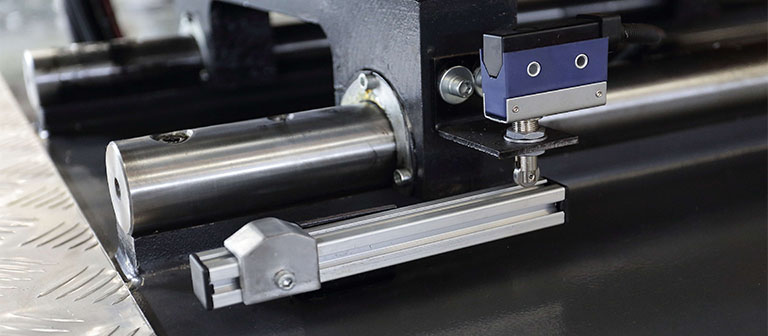

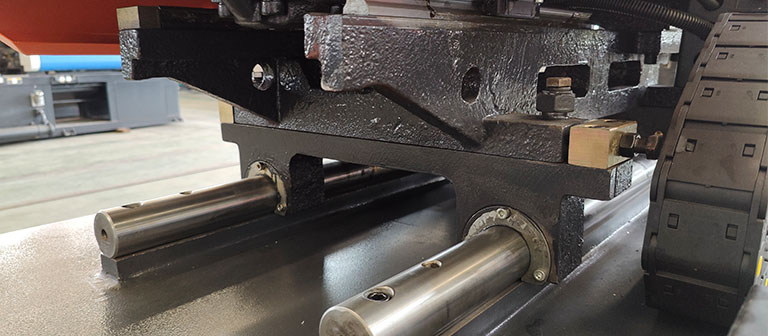

2.DOUBLE LAYER INJECTION GUIDE RAIL STRUCTURE, NO RESISTANCE AND NO DISASSEMBLY
F9 series machine adopted double-layer guide rail, the upper layer is linear guide rail which has better rigidity. The injection movement is smooth and accurate without friction resistance. It also improves the repetition accuracy of products to less than 0.5% and increases injection speed by 10%-40% with low noise. The lower guide rail is in a standard design with enough length, no need to disassemble out the screw for replacement as before, just move it forward or backward, which is convenient for users to change screw & barrel with different diameters. It can be applied to all kinds of screw L/D ratio, the compatibility is stronger (such as PC material, PET material, etc.), to achieve a multi-purpose machine, no need modification.

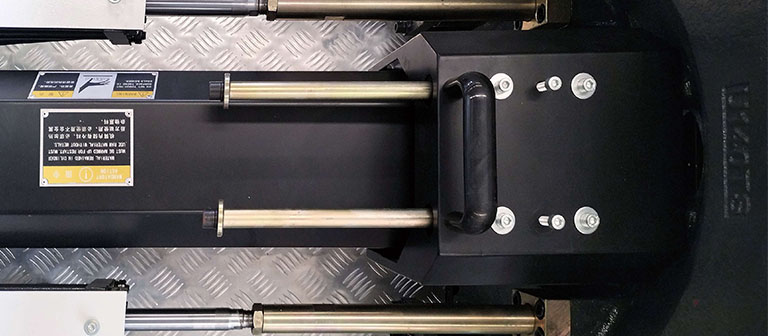

3.BALANCED DOUBLE CYLINDER INTEGRAL INJECTION MOVEMENT STRUCTURE, ACCURATE AND STABLE, AVOID MELTED MATERIAL LEAKAGE
F9 series machine tie bar space of larger compared with ordinary machine in same model, which has bigger space for mould. For example, the same product if by ordinary injection molding machine needs 168 tons, while by SONLY F9 supersonic series only need 140 tons.

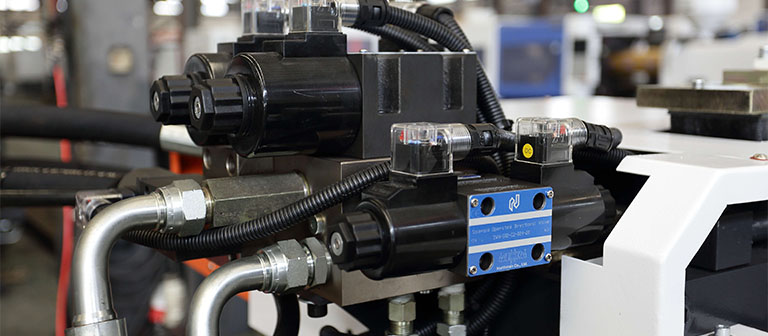

4.NON-WELDED MAIN OIL PIPE DESIGN, LEAK-PROOF AND CLEANER
Non-welded pipe circuit ensures long-term usage without oil leakage by weld crack and reduces oil pollution. High precision bypass filter device, self sealing oil suction filter, non welded pipeline+ integral oil cylinder assembly can be selected to improve the oil cleanliness. New oil circuit design, beautiful appearance,fast and stable internal oil circuit, reducing cost and increasing efficiency.
5.SPECIAL COMPUTER CONTROLLER, EFFICIENT, DURABLE, STRONG DUCTILITY
It is equipped with advanced special computer controller for injection molding machine (Techmation series), one button 12 inch aluminum milling operation panel, large operation screen, which is intuitive and easy to use and has high-end and durable performance meanwhile with beautiful and atmospheric appearance. The secondary development of the operating program has greatly improved the scanning cycle, reserved enough IO points, open programming platform, high-end multipoint touch screen is optional. It can support multiple data interface protocols and provides cloud services for remote assistance and
maintenance (optional).

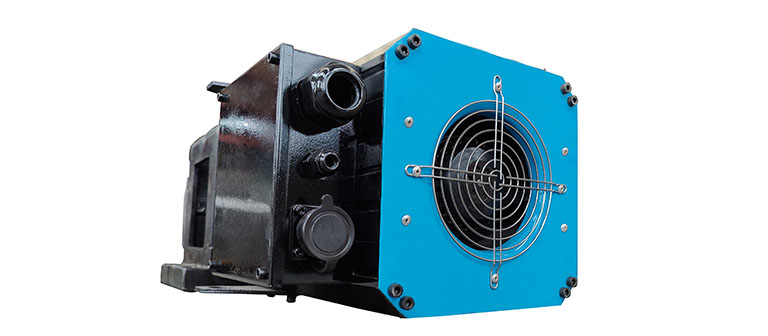

6.NEW GENERATION SERVO SYSTEM, MORE EFFICIENT
Super fast response can reach the highest pressure in 27ms. Compared with the same model/specification ordinary machine, its production molding time is about 3s faster, which shorts the cycle time effectively and improves production efficiency. It is especially suitable for transparent products. With high system pressure, it can use for a wider range of products.
