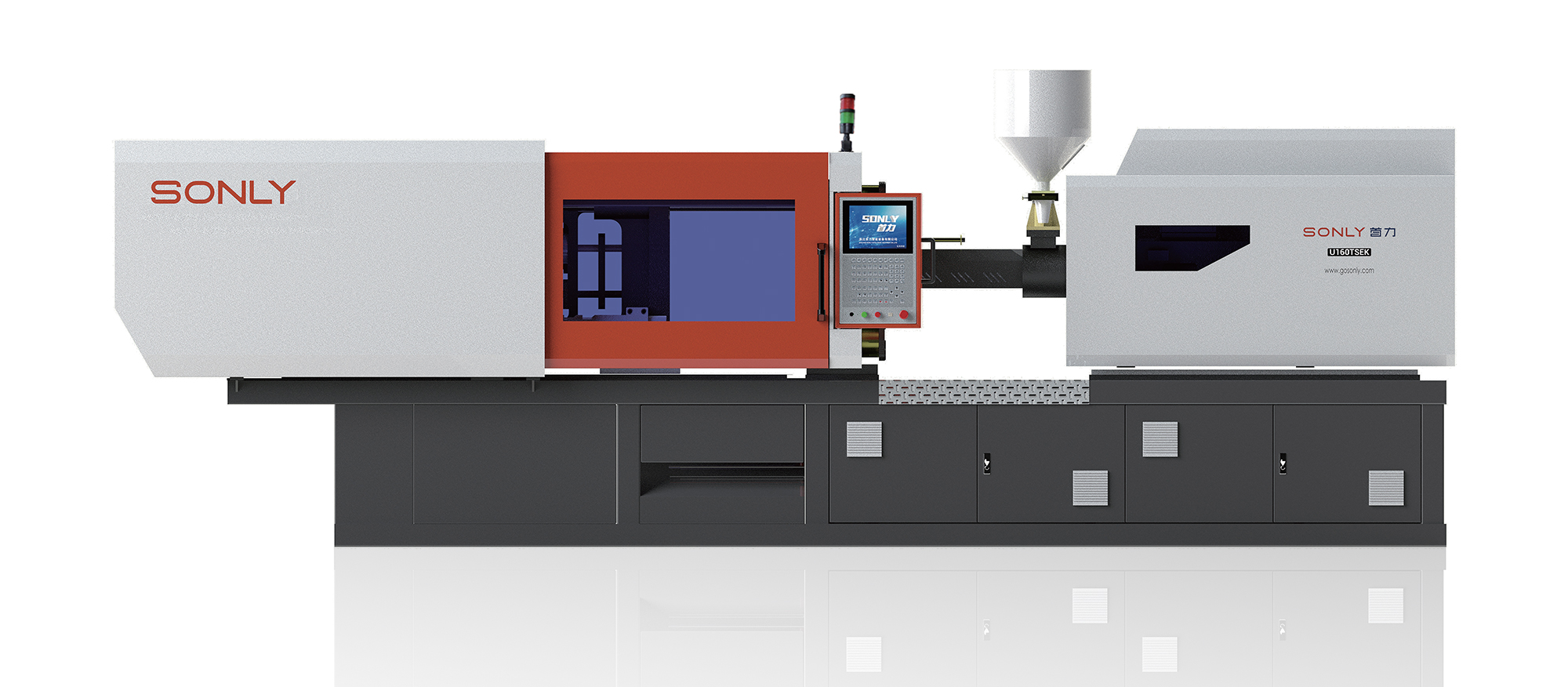

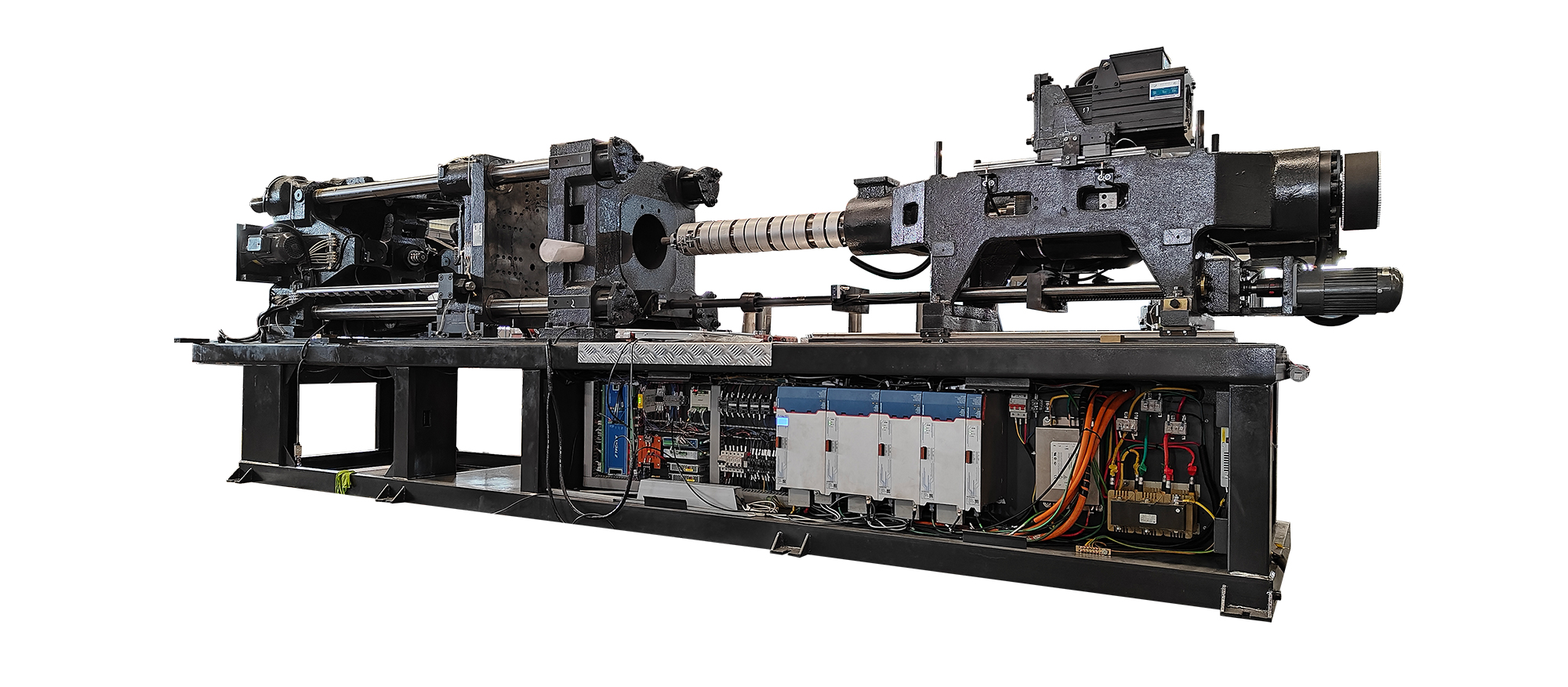

U60-300TSEK

Zhejiang Sonly Intelligent Equipment Co.,ltd

Advantage
U60TSEK
U100TSEK
U130TSEK
U160TSEK
U200TSEK
U240TSEK
U300TSEK

Techmation electronic control system

Simple to operate and powerful, a high-performance solution for electric injection molding machines.

Excellent injection stability

The control is more precise, and the molding is precise, stable and reliable. Injection pressure, holding pressure stability, accuracy 0

+0.1Mpa.

Multi-axis synchronous operation

The motor is driven by a separate motor for mold unlocking, injection glue, melt and ejector pins, which can realize various synchronous processes and reduce

product cycle times.

High rigidity template structure

Good rigidity, uniform force distribution; The parallelism of the template≤0.03mm, which is suitable for injection molding of precision molds.

Highly stable clamping mechanism

The unlocking speed is fast and stable, and the repeatability of the unlocking position is t0.03mm.

		U60TSEK
Specifications		L			M
Injection Unit		A	B	C	A	B	C
Injection device
Screw diameter	mm	20	24	28	24	28	32
Screw ratio	L/D	21	21	19	21	21	19
Theoretical Shot volume	cm³	28.3	40.7	55.4	49.7	67	88
Injection pressure	MPa	255	220	168	255	220	168
Theoretical Shot weight(PS)	g	25.7	37	50.4	45.3	61	80
Theoretical injection speed	mm/s	350
Contact force of nozzle	KN	15
Screw Speed	rpm	400
Locking device
Clamping force	KN	600
Toggle stroke	mm	270
Space between tie bars	mm	370*320
Max mould height	mm	370
Min mould height	mm	150
Ejector stroke	mm	70
Ejector force	KN	30
Ejector Number		4+1
Die Hole Diameter	mm	100
Other
Heter Power (mm)	mm	7.5			8
Mechanical weight (Ton)	Ton	3.2			3.5
Overall dimensions（LxWxH）(m)	m	4.11.31.6			4.11.31.6
Motor power (KW)	KW	22+7.1+11			25+16+11

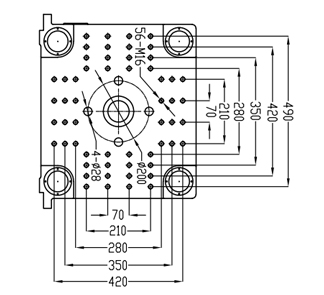

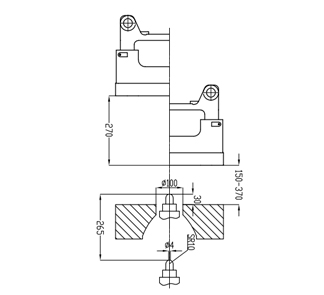

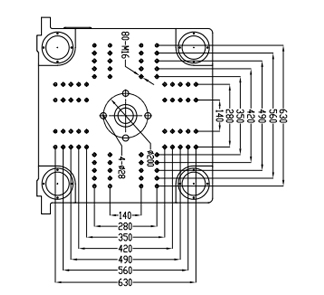

Front dimensions of the template
Formwork side dimensions

		U100TSEK
Specifications		L			M			N
Injection Unit		A	B	C	A	B	C	A	B	C
Injection device
Screw diameter	mm	20	24	28	24	28	32	28	32	36
Screw ratio	L/D	21	21	19	21	21	19	24	21	18.7
Theoretical Shot volume	cm³	28.3	40.7	55.4	49.7	67	88	80	104.5	132.3
Injection pressure	MPa	255	220	168	255	220	168	261	200	158
Theoretical Shot weight(PS)	g	25.7	37	50.4	45.3	61	80	72.8	95.1	120.4
Theoretical injection speed	mm/s	350			350			350
Contact force of nozzle	KN	15			15			20
Screw Speed	rpm	400			400			400
Locking device
Clamping force	KN	1000
Toggle stroke	mm	340
Space between tie bars	mm	440X390
Max mould height	mm	450
Min mould height	mm	140
Ejector stroke	mm	100
Ejector force	KN	30
Ejector Number		4+1
Die Hole Diameter	mm	125
Other
Heter Power (mm)	mm	7.5			8			10.5
Mechanical weight (Ton)	Ton	3.5			3.8			4.2
Overall dimensions（LxWxH）(m)	m	4.8x1.35x1.8			4.8x1.35x1.8			4.8x1.35x1.8
Motor power (KW)	KW	22+7.1+16			25+16+16			30+16+16

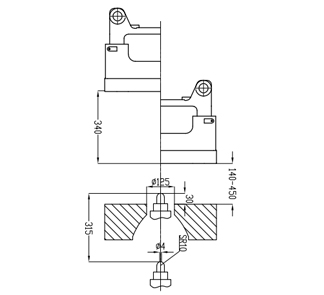

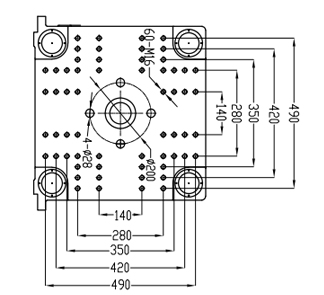

Front dimensions of the template
Formwork side dimensions

		U130TSEK
Specifications		L			M			N
Injection Unit		A	B	C	A	B	C	A	B	C
Injection device
Screw diameter	mm	24	28	32	28	32	36	32	36	40
Screw ratio	L/D	21	21	19	24	21	18.7	23.6	21	19
Theoretical Shot volume(PS)	cm3	49.7	67	88	80	104.5	132.3	120.6	152.6	188.4
Injection pressure	MPa	255	220	168	261	200	158	253	200	162
Theoretical Shot weight(PS)	g	45.3	61	80	72.8	95.1	120.4	109.7	138.9	171.4
Theoretical injection speed	mm/s	350			350			350
Contact force of nozzle	KN	15			20			20
Screw Speed	rpm	400			400			400
Locking device
Clamping force	KN	1300
Toggle stroke	mm	380
Space between tie bars	mm	470*420
Max mould height	mm	480
Min mould height	mm	180
Ejector stroke	mm	100
Ejector force	KN	30
Ejector Number		4+1
Die Hole Diameter	mm	125
Other
Heter Power	KW	8			10.5			14
Mechanical weight	Ton	4.1			4.4			4.7
Overall dimensions（LxWxH）	m	4.8x1.35x1.8			4.8x1.35x1.8			4.971.41.73
Motor power	KW	25+16+21			30+16+21			40+16+21
Front dimensions of the template
Formwork side dimensions

		U160TSEK
Specifications		L			M			N
Injection Unit		A	B	C	A	B	C	A	B	C
Injection device
Screw diameter	mm	28	32	36	32	36	40	36	40	45
Screw ratio	L/D	24	21	18.7	23.6	21	19	23.3	21	19
Theoretical Shot volume(PS)	cm3	80	104.5	132.3	120.6	152.6	188.4	173	213	270
Injection pressure	MPa	261	200	158	253	200	162	247	200	158
Theoretical Shot weight(PS)	g	72.8	95.1	120.4	109.7	138.9	171.4	157	194	246
Theoretical injection speed	mm/s	350			350			350
Contact force of nozzle	KN	20			20			20
Screw Speed	rpm	400			400			400
Locking device
Clamping force	KN	1600
Toggle stroke	mm	420
Space between tie bars	mm	520*520
Max mould height	mm	520
Min mould height	mm	200
Ejector stroke	mm	120
Ejector force	KN	30
Ejector Number		4+1
Die Hole Diameter	mm	125
Other
Heter Power	KW	10.5			13			14
Mechanical weight	Ton	5.8			6.1			6.4
Overall dimensions（LxWxH）	m	5.41.52.3			5.41.52.3			5.41.52.3
Motor power	KW	30+16+25			40+16+25			40+19+25

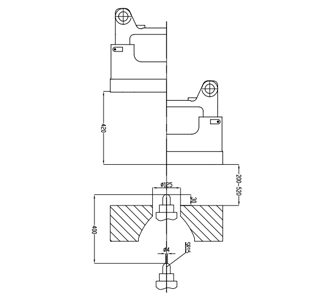

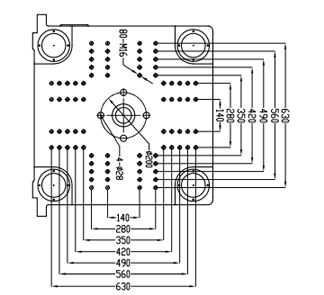

Front dimensions of the template
Formwork side dimensions

		U200TSEK
Specifications		L			M			N
Injection Unit		A	B	C	A	B	C	A	B	C
Injection device
Screw diameter	mm	32	36	40	36	40	45	40	45	50
Screw ratio	L/D	23.6	21	19	23.3	21	19	23.5	21	19
Theoretical Shot volume(PS)	cm³	120.6	152.6	188.4	173	213	270	252	319	395
Injection pressure	MPa	253	200	162	247	200	158	253	200	162
Theoretical Shot weight(PS)	g	109.7	138.9	171.4	157	194	246	229	290	358
Theoretical injection speed	mm/s	350			350			300
Contact force of nozzle	KN	20			20			40
Screw Speed	rpm	400			400			350
Locking device
Clamping force	KN	2000
Toggle stroke	mm	520
Space between tie bars	mm	590*530
Max mould height	mm	560
Min mould height	mm	200
Ejector stroke	mm	130
Ejector force	KN	50
Ejector Number		8+1
Die Hole Diameter	mm	160
Other
Heter Power	KW	13			14			15
Mechanical weight	Ton	7.5			8.2			8.9
Overall dimensions（LxWxH）	m	6.11.62.3			6.11.62.3			6.11.62.3
Motor power	KW	40+16+30			40+19+30			46.9+19+30

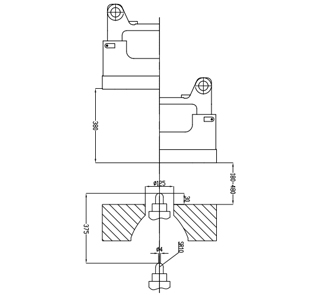

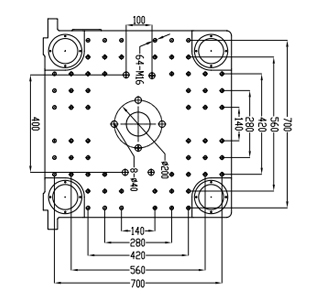

Front dimensions of the template

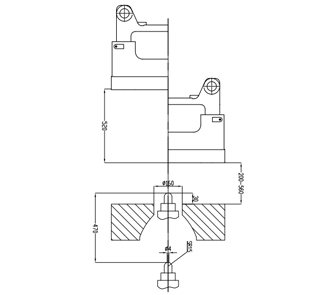

Formwork side dimensions

		U240TSEK
Specifications		L			M			N
Injection Unit		A	B	C	A	B	C	A	B	C
Injection device
Screw diameter	mm	36	40	45	40	45	50	45	50	55
Screw ratio	L/D	23.3	21	19	23.5	21	19	23.2	21	19
Theoretical Shot volume(PS)	cm³	173	213	270	252	319	395	349.7	431.8	522.4
Injection pressure	MPa	247	200	158	253	200	162	247	200	165
Theoretical Shot weight(PS)	g	157	194	246	229	290	358	318.2	392.9	475.4
Theoretical injection speed	mm/s	350			300			300
Contact force of nozzle	KN	20			40			40
Screw Speed	rpm	400			350			350
Locking device
Clamping force	KN	2400
Toggle stroke	mm	590
Space between tie bars	mm	650*585
Max mould height	mm	680
Min mould height	mm	230
Ejector stroke	mm	150
Ejector force	KN	50
Ejector Number		12+1
Die Hole Diameter	mm	160
Other
Heter Power	KW	14			15			19
Mechanical weight	Ton	10.6			11.3			12
Overall dimensions（LxWxH）	m	6.861.72.46			6.861.72.46			6.861.72.46
Motor power	KW	40+19+30			46.9+19+30			60+23+30

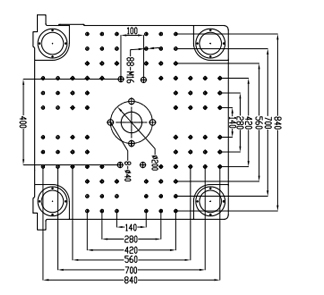

Front dimensions of the template

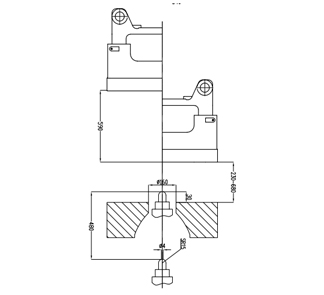

Formwork side dimensions

		U300TSEK
Specifications		L			M			N
Injection Unit		A	B	C	A	B	C	A	B	C
Injection device
Screw diameter	mm	40	45	50	45	50	55	50	55	60
Screw ratio	L/D	23.5	21	19	23.2	21	19	23.1	21	19.3
Theoretical Shot volume(PS)	cm³	252	319	395	349.7	431.8	522.4	471	570	678
Injection pressure	MPa	253	200	162	247	200	165	236	195	164
Theoretical Shot weight(PS)	g	229	290	358	318.2	392.9	475.4	428	518	617
Theoretical injection speed	mm/s	300			300			300
Contact force of nozzle	KN	40			40			55
Screw Speed	rpm	350			350			350
Locking device
Clamping force	KN	3000
Toggle stroke	mm	610
Space between tie bars	mm	730*685
Max mould height	mm	720
Min mould height	mm	250
Ejector stroke	mm	150
Ejector force	KN	60
Ejector Number		12+1
Die Hole Diameter	mm	160
Other
Heter Power	KW	15			19.5			25
Mechanical weight	Ton	14.3			15.2			16.1
Overall dimensions（LxWxH）	m	7.02.02.2			7.02.02.2			7.02.02.2
Motor power	KW	46.9+19+40			60+23+40			60+30+40

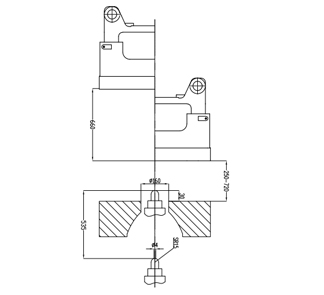

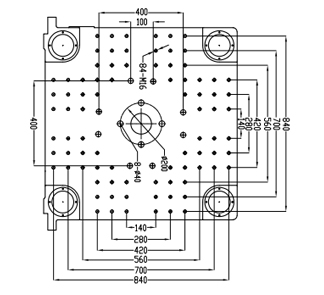

Front dimensions of the template
Formwork side dimensions
