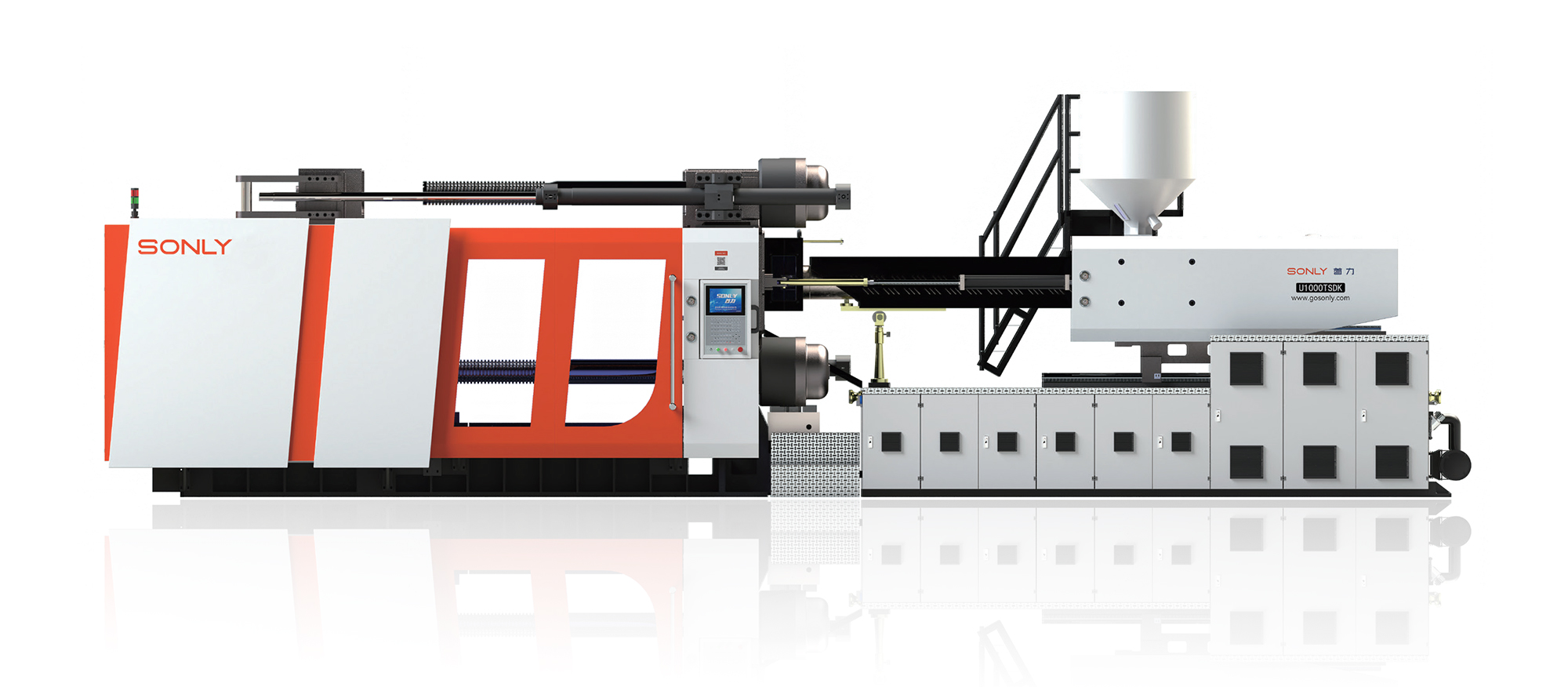

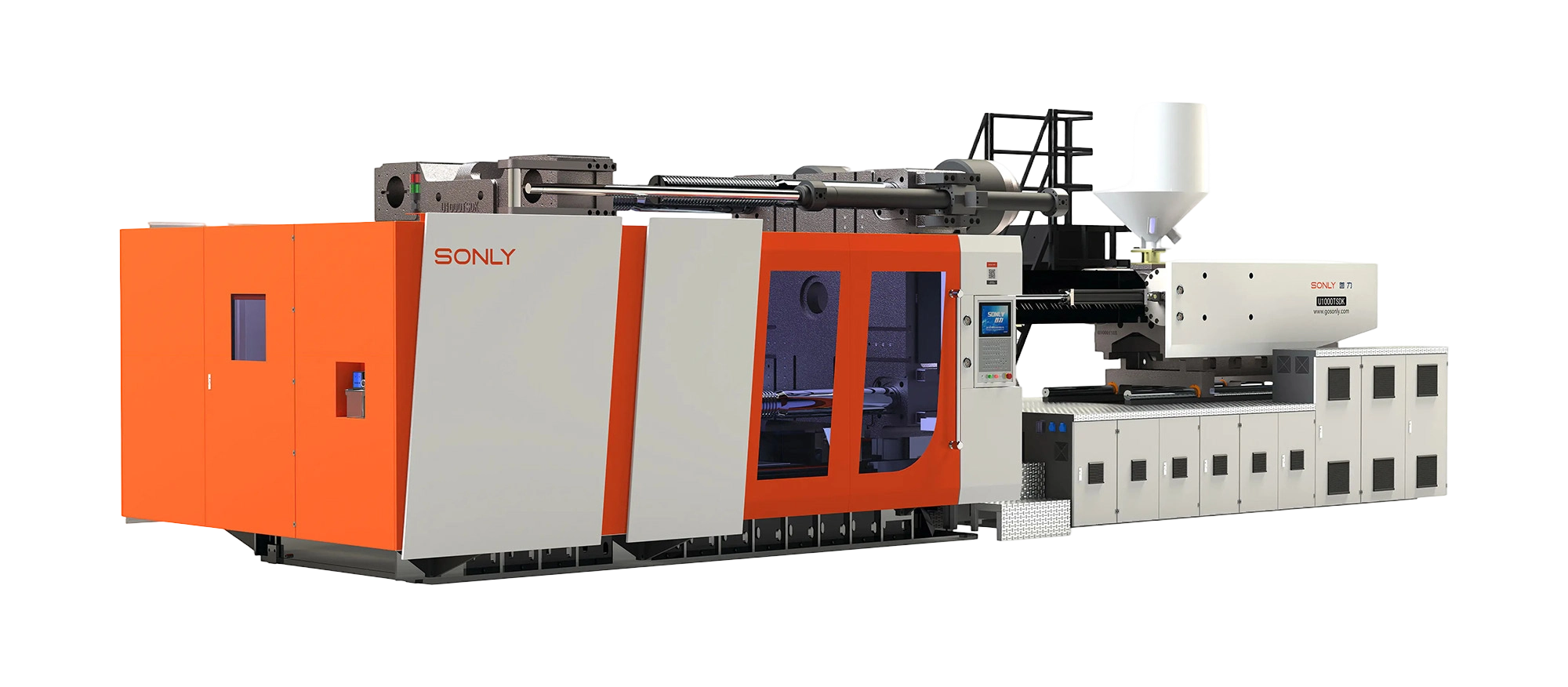

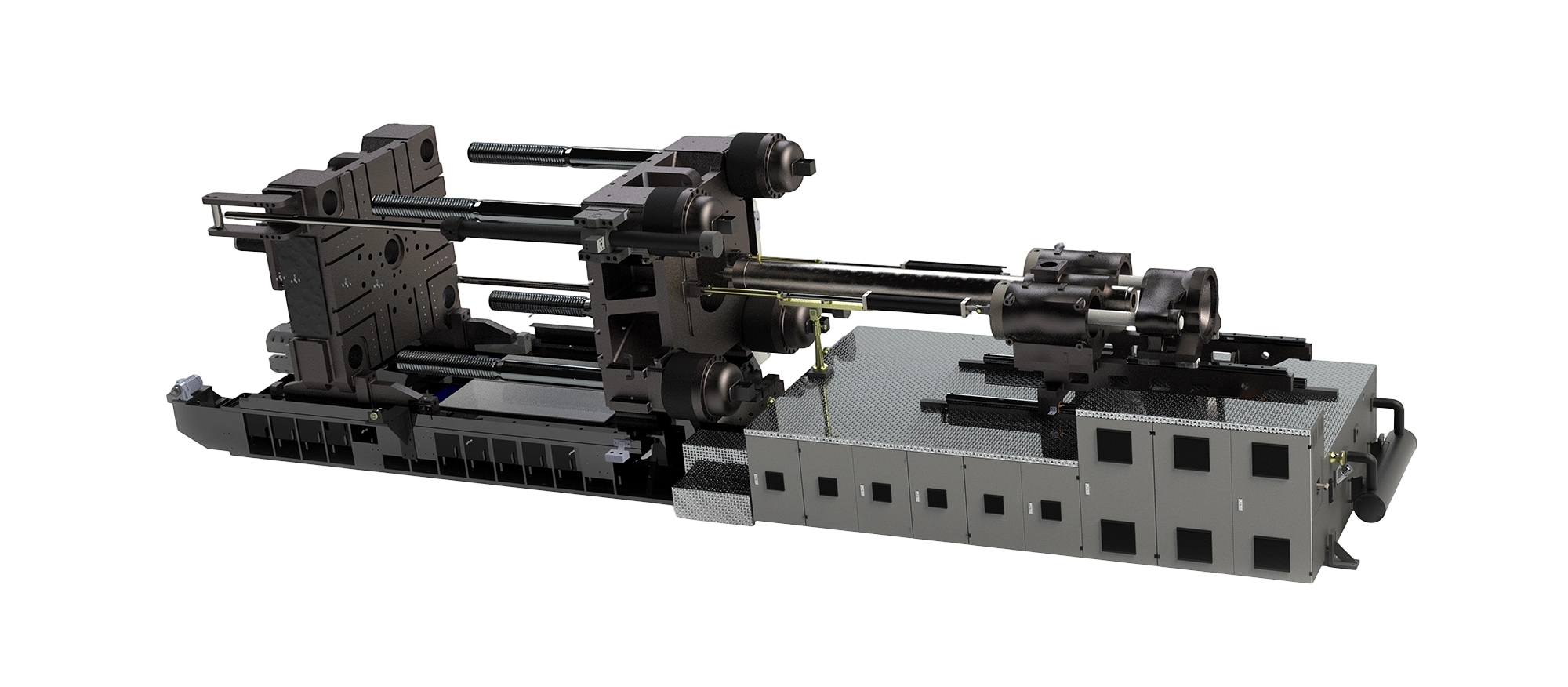

U800-2900TSDK

Zhejiang Sonly Intelligent Equipment Co.,ltd

Advantage
U800TSDK
U900TSDK
U1000TSDK
U1100TSDK
U1300TSDK
U1450TSDK
U1700TSDK
U1850TSDK
U2000TSDK
U2200TSDK
U2700TSDK
U2900TSDK

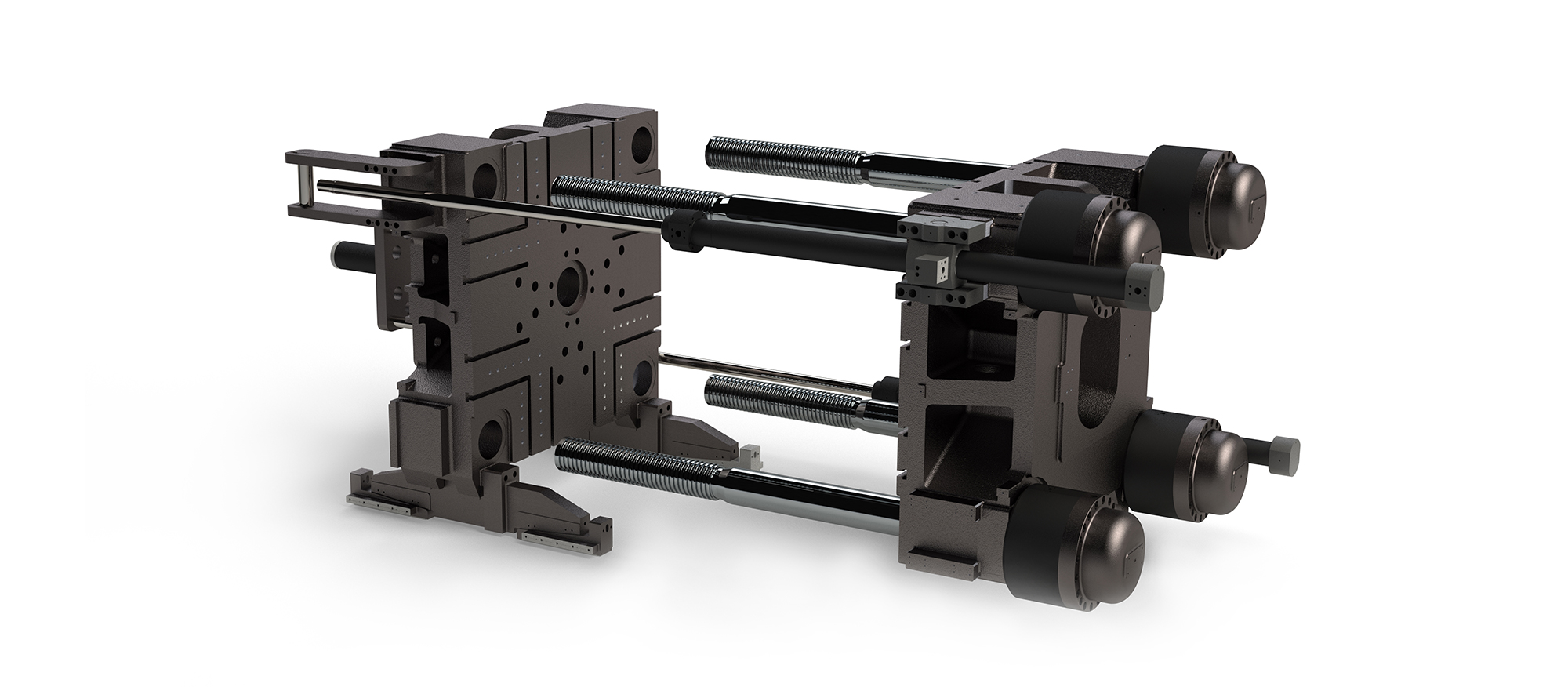

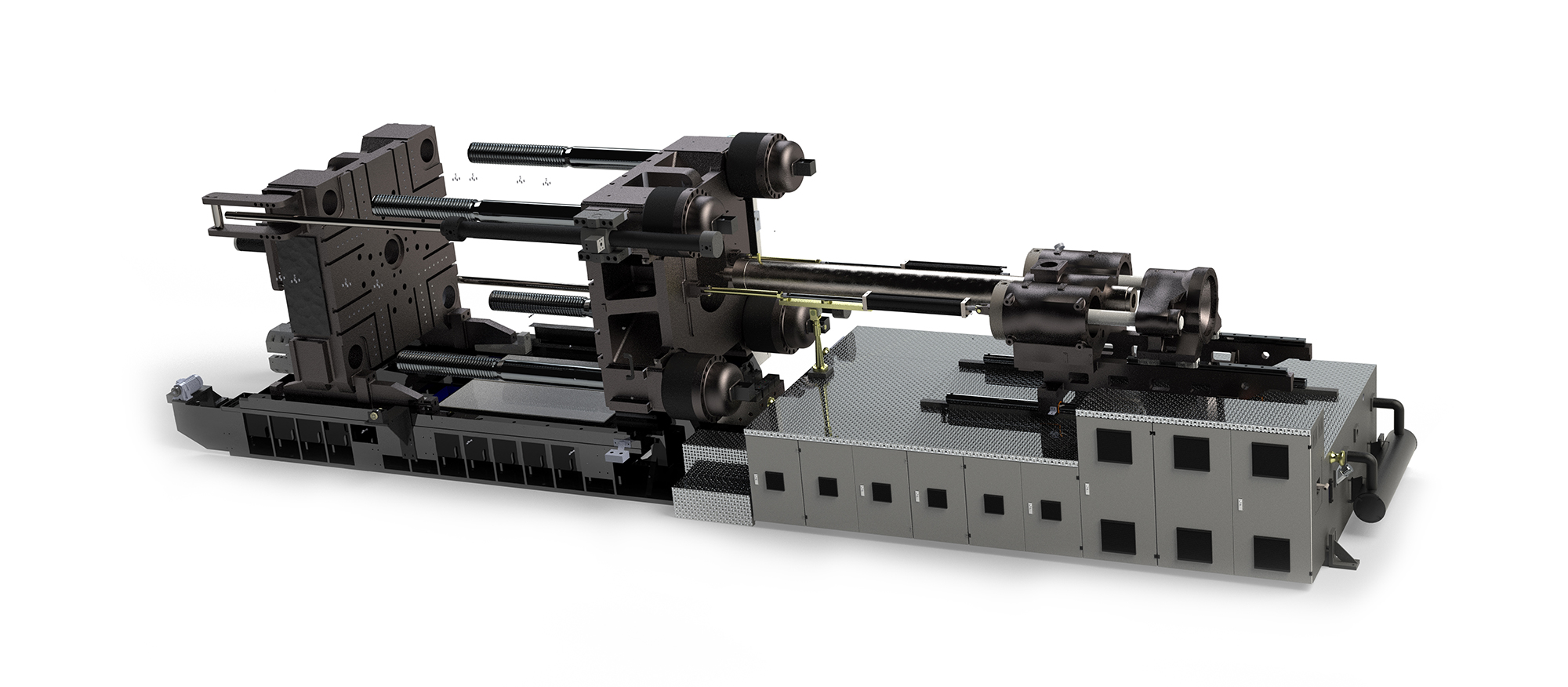

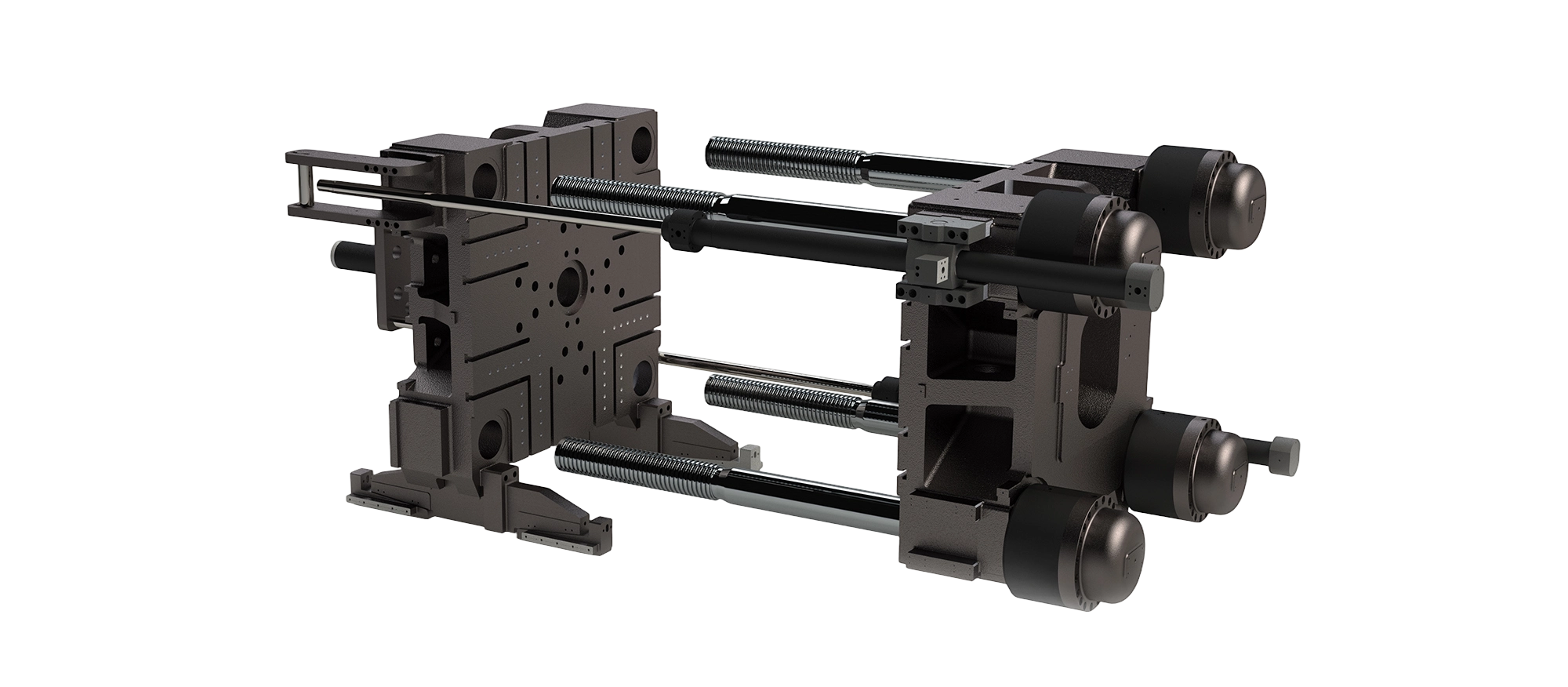

1. Compact and space-saving construction and flexible machine layout

The modern design of Sonly two-platen machine, double-platen closed side and very compact injection unit with compact external dimensions can achieve a very small footprint, saving expensive space. From basic requirements to individual customization of turnkey solutions through numerous option packages。

2. Energy-efficient production of large components

Since the pump power is demand-oriented, when the machine is stationary, the motor stops working and consumes no energy. Sonly high-efficiency servo-hydraulic system ensures high cost-effectiveness in the production of large-volume or large-area parts。

3. Increase productivity with digital solutions

Sonly's digital solution automatically determines the appropriate clamping force, precise clamping force distribution and template parallelism adjustment to ensure higher process stability and reduce mold wear. The mold exhaust is kept stable within the ideal range, which greatly reduces the scrap rate。

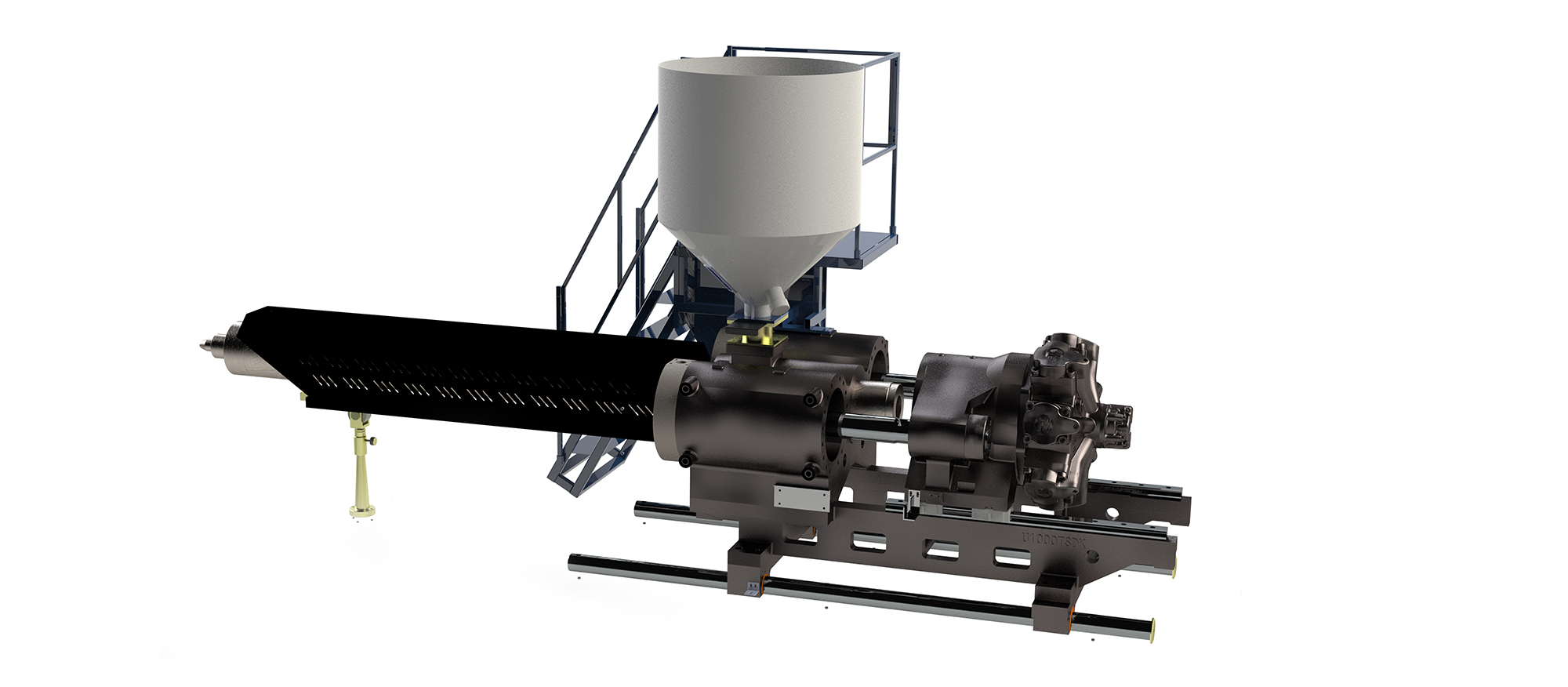

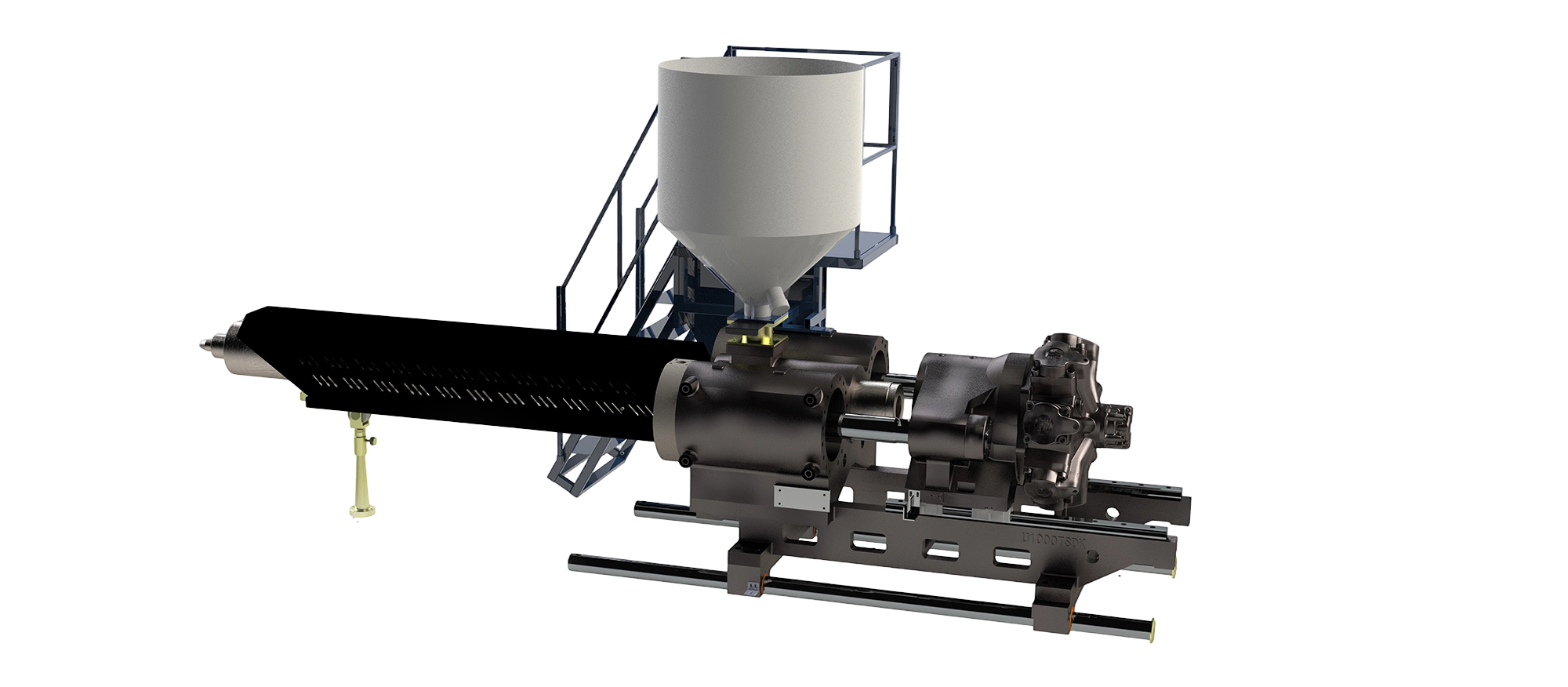

4. Modular injection unit reduces downtime

Our mature solutions increase productivity: shot cylinder replacement is quick and easy without special tools; combined with modular nozzle design, it reduces downtime

5. Short cycle and dry running time

Customized plasticizing and injection unit, combined with quick-close mechanism, improves machine performance, higher output, shorter cycle time, injection and plasticizing performance can be increased by 25%

6. Scientific design, higher efficiency

The extension of the distance between the tiebar makes the output larger. Due to the ergonomic design of the ejection zone and ejection plate, start-up times are shorter and machine set-up and die change times are also faster. Core pulls, hot runners, water and electricity for near-mold interfaces make tool setup faster and easier. Closer size classification and more wide plate models allow you to invest in the exact machine size you need

		U800TSDK
Internationally recognized model		499.0				671.4				891.2
Injection device
Screw diameter	mm	90	95	100	110	90	100	110	120	100	110	120	130
Theoretical injection capacity	cm³	2817	3139	3478	4208	2957	3650	4417	5256	4239	5129	6104	7164
Shot weight(PS)	g	2563	2856	3164	3829	2691	3322	4019	4783	3858	4668	5555	6519
Shot weight(PS)	oz	90	100	111	134	94	117	141	168	135	164	195	229
Injection pressure	MPa	177.0	159.0	143.0	118.0	227	184	152	128	210	174	146	125
Screw ratio		23.2	22	20.9	19	24.4	22	20	18.3	24.2	22	20.2	18.6
Injection rate	cm³/s	678	755	837	1012	585	723	875	1041	759	918	1093	1283
Injection piston speed	mm/s	106.6				92.2				96.7
Injection stroke	mm	443				465				540
Max screw speed	r/min	100				109				111
Electric heating power	KW	60				70				90
Number of heating zones in the material barrel		5+1				6+1				7+1
Locking device
Clamping force	KN	8000/9000
Mold opening force	KN	760
Platen dimension	mmxmm	1690x1540
Space between tie bar	mmxmm	1180x1020
Bulk modulus		480-1120
Opening stroke	mm	1650
Max distance Platen	mm	2130
Ejector force forward	KN	220
Ejector stroke	mm	320
Number of ejector bar	PC	17
System
Sys Pressure	Mpa	16/25				16/25				16/25
Pump Motor	KW	34+43				43+43				34+34+34
Fuel tank capacity	L	900				1000				1200
Maximum weight of mold	T	13				13				13
Overall weight	T	33+10				33+11				33+12
Overall size	M	10.13.22.9				10.13.22.9				10.53.32.9

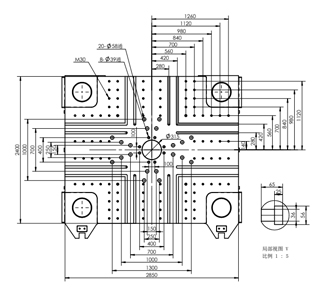

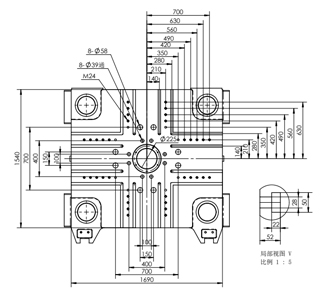

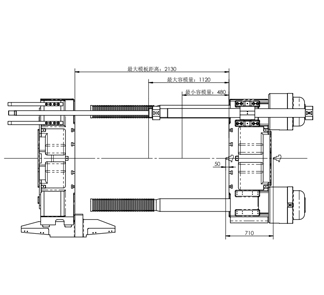

Front dimensions of the template

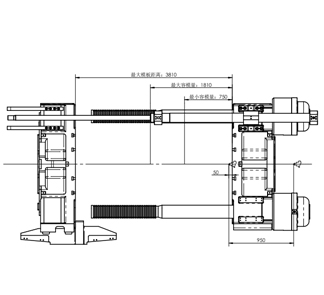

Formwork side dimensions

		U900TSDK
Internationally recognized model		499.0				671.4				891.2
Injection device
Screw diameter	mm	90	95	100	110	90	100	110	120	100	110	120	130
Theoretical injection capacity	cm³	2817	3139	3478	4208	2957	3650	4417	5256	4239	5129	6104	7164
Shot weight(PS)	g	2563	2856	3164	3829	2691	3322	4019	4783	3858	4668	5555	6519
Shot weight(PS)	oz	90	100	111	134	94	117	141	168	135	164	195	229
Injection pressure	MPa	177.0	159.0	143.0	118.0	227	184	152	128	210	174	146	125
Screw ratio		23.2	22	20.9	19	24.4	22	20	18.3	24.2	22	20.2	18.6
Injection rate	cm³/s	678	755	837	1012	585	723	875	1041	759	918	1093	1283
Injection piston speed	mm/s	106.6				92.2				96.7
Injection stroke	mm	443				465				540
Max screw speed	r/min	100				109				111
Electric heating power	KW	60				70				90
Number of heating zones in the material barrel		5+1				6+1				7+1
Locking device
Clamping force	KN	8000/9000
Mold opening force	KN	760
Platen dimension	mmxmm	1690x1540
Space between tie bar	mmxmm	1180x1020
Bulk modulus		480-1120
Opening stroke	mm	1650
Max distance Platen	mm	2130
Ejector force forward	KN	220
Ejector stroke	mm	320
Number of ejector bar	PC	17
System
Sys Pressure	Mpa	16/25				16/25				16/25
Pump Motor	KW	34+43				43+43				34+34+34
Fuel tank capacity	L	900				1000				1200
Maximum weight of mold	T	13				13				13
Overall weight	T	33+10				33+11				33+12
Overall size	M	10.13.22.9				10.13.22.9				10.53.32.9

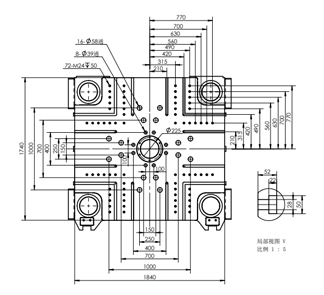

Front dimensions of the template
Formwork side dimensions

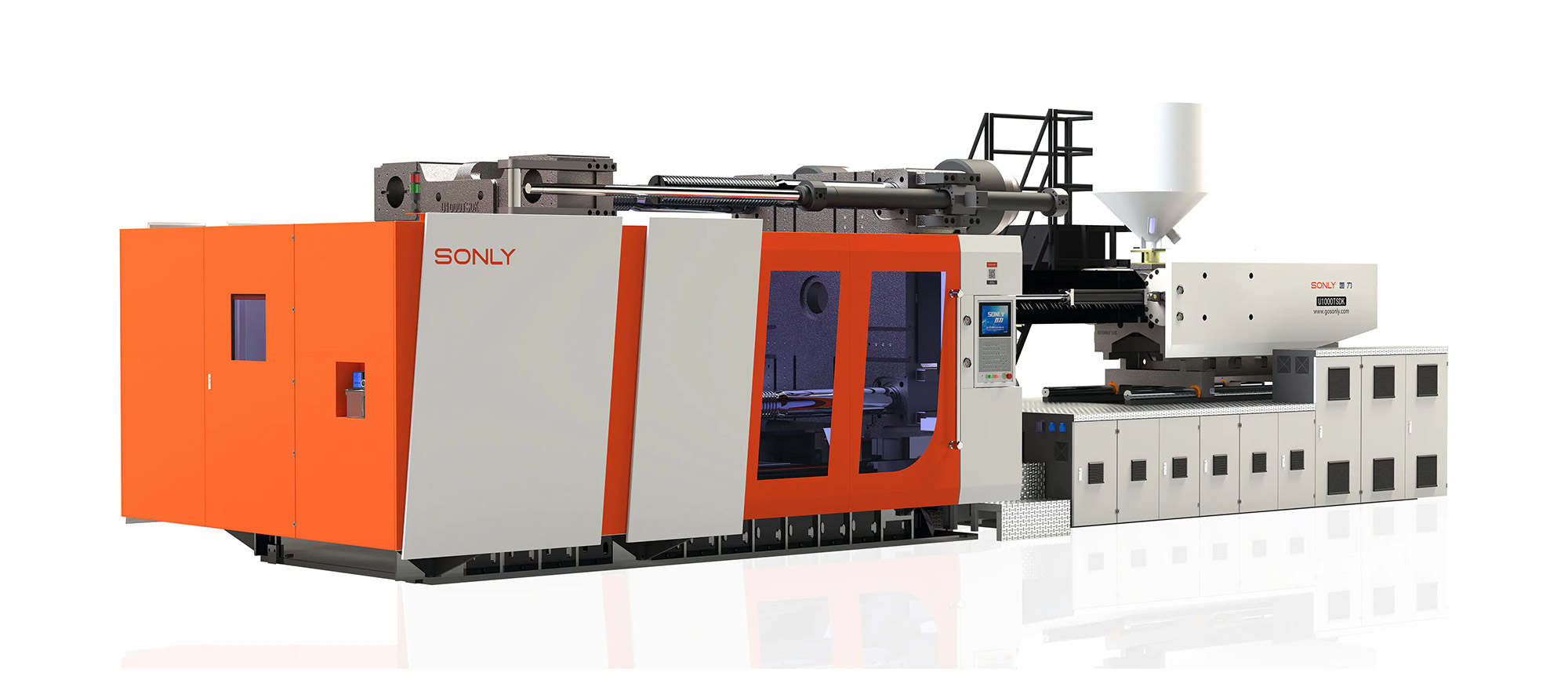

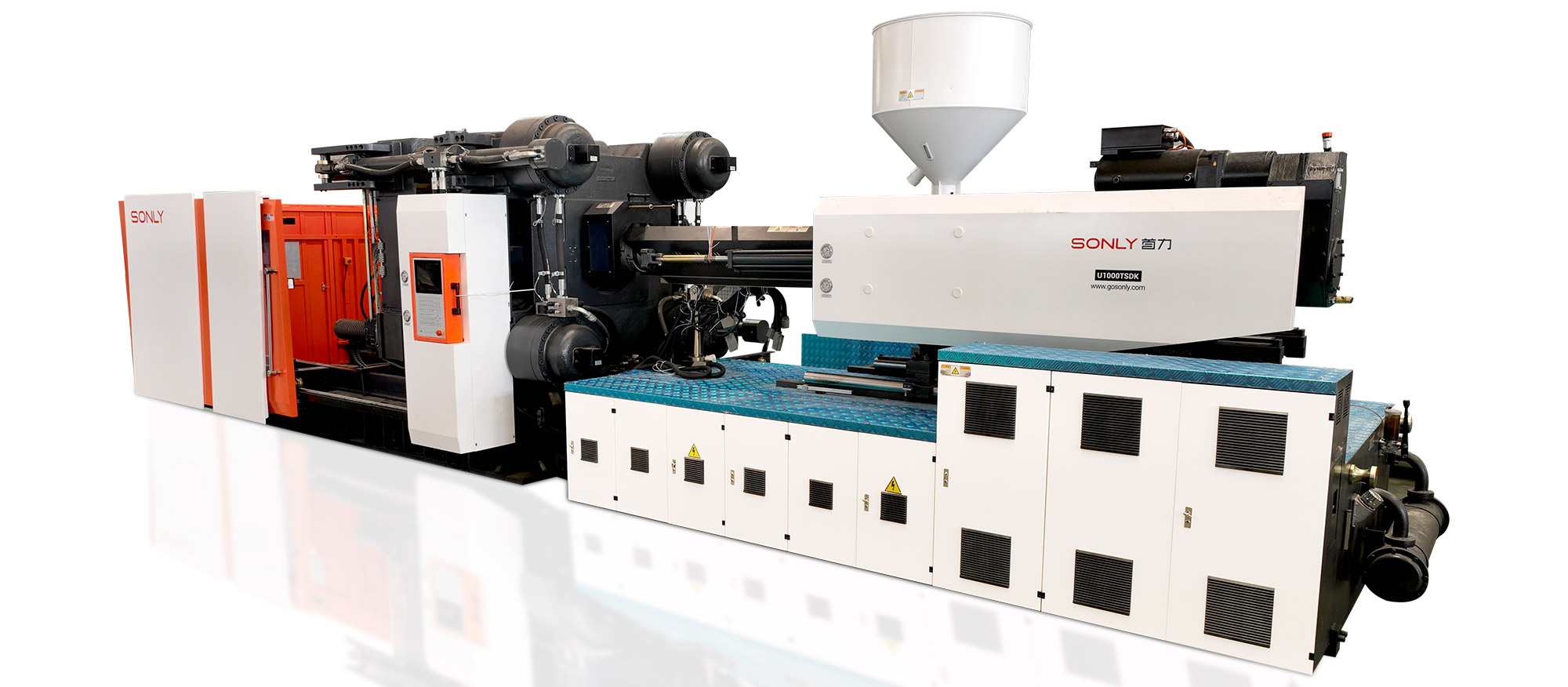

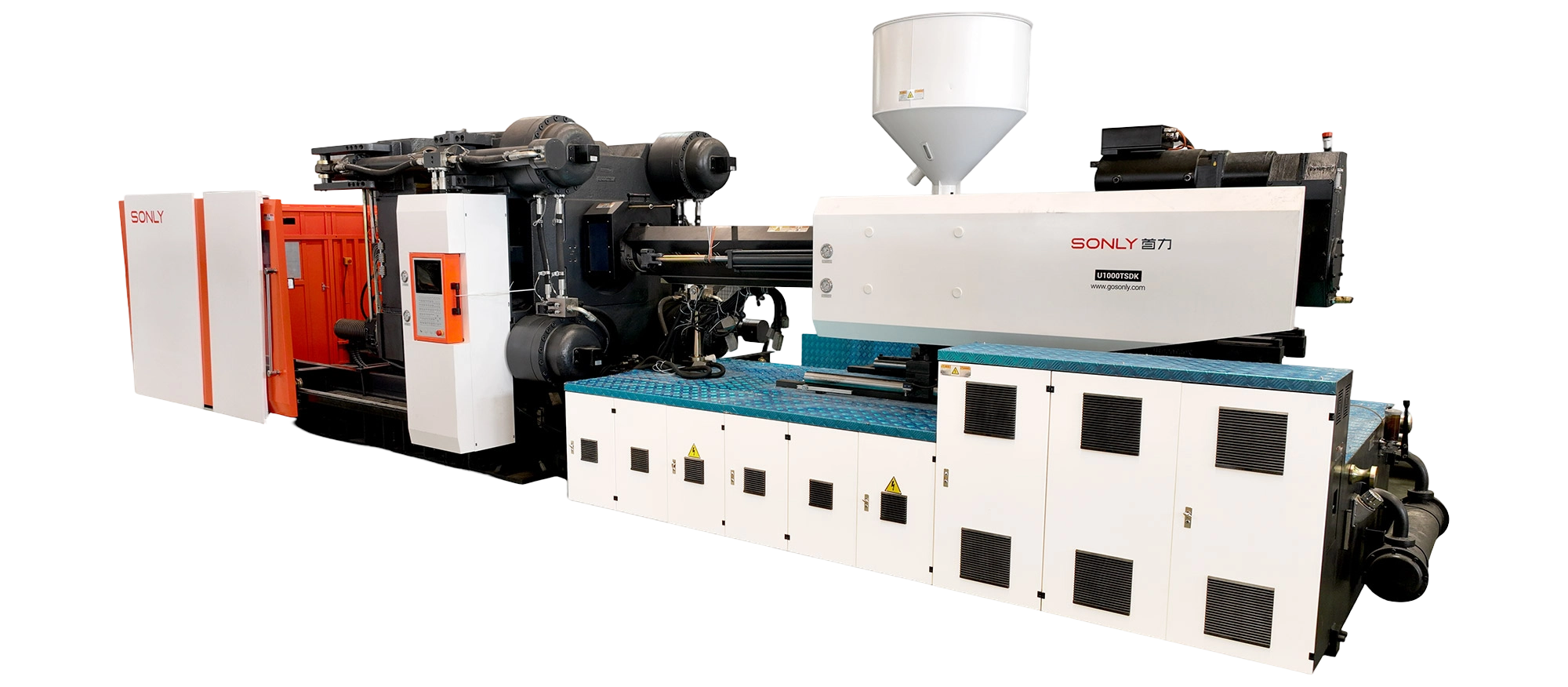

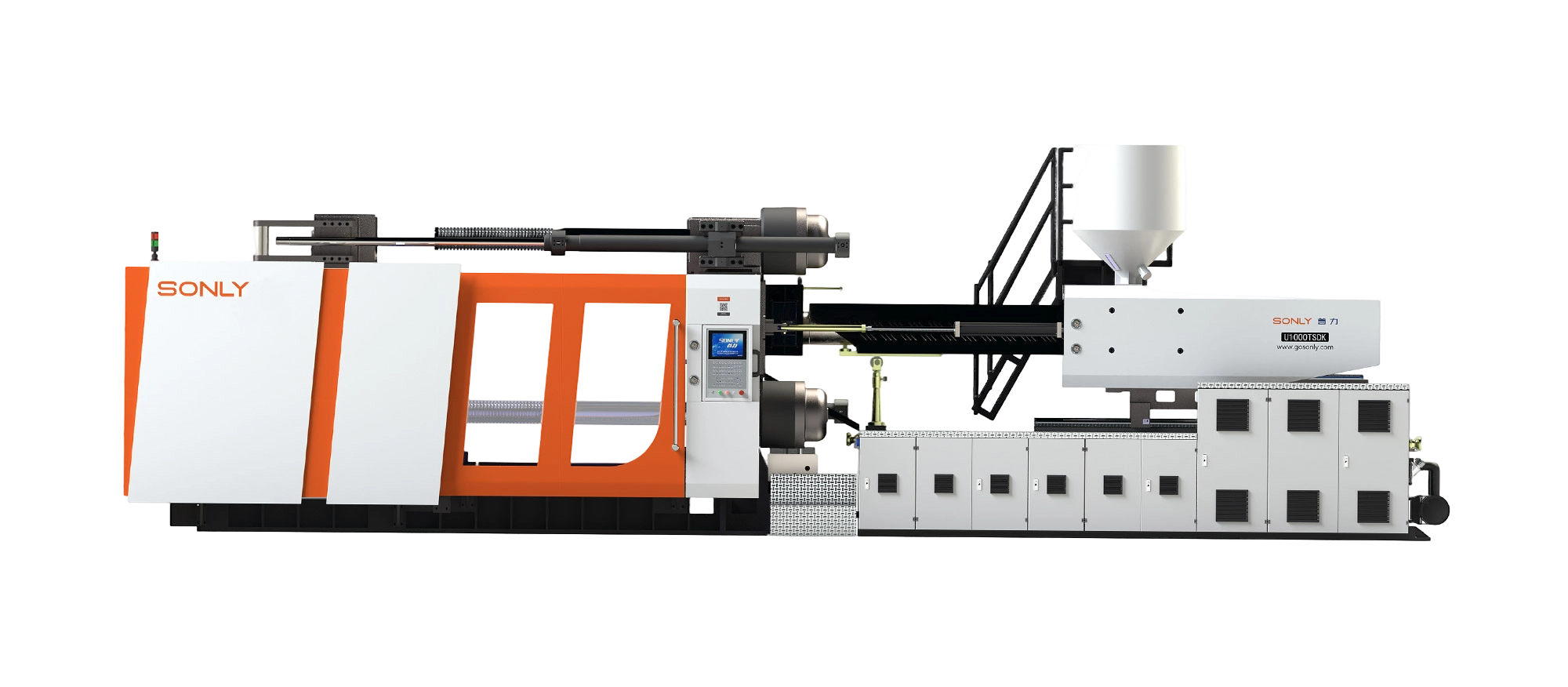

		U1000TSDK
Internationally recognized model		671.4				891.2				1160.3
Injection device
Screw diameter	mm	90	100	110	120	100	110	120	130	110	120	130	1400
Theoretical injection capacity	cm³	2957	3650	4417	5256	4239	5129	6104	7164	5651	6725	7893	9154
Shot weight(PS)	g	2691	3322	4019	4783	3858	4668	5555	6519	5143	6120	7183	8330
Shot weight(PS)	oz	94	117	141	168	135	164	195	229	180	214	252	292
Injection pressure	MPa	227	184	152	128	210	174	146	125	205	172	147	126
Screw ratio		24.4	22	20	18.3	24.2	22	20.2	18.6	24	22	20.3	18.9
Injection rate	cm³/s	585	723	875	1041	759	918	1093	1283	911	1084	1272	1476
Injection piston speed	mm/s	92.2				96.7				95.6
Injection stroke	mm	465				540				595
Max screw speed	r/min	109				111				103
Electric heating power	KW	70				90				97
Number of heating zones in the material barrel		6+1				7+1				7+1
Locking device
Clamping force	KN	10000/11000
Mold opening force	KN	875
Platen dimension	mmxmm	1840x1740
Space between tie bar	mmxmm	1280x1180
Bulk modulus		500-1200
Opening stroke	mm	1900
Max distance Platen	mm	2400
Ejector force forward	KN	274
Ejector stroke	mm	360
Number of ejector bar	PC	25
System
Sys Pressure	Mpa	16/25				16/25				16/25
Pump Motor	KW	43+43				34+34+34				43+43+34
Fuel tank capacity	L	1000				1200				1400
Maximum weight of mold	T	19				19				19
Overall weight	T	41+11				41+12				40+14
Overall size	M	10.93.43.0				10.93.43.0				11.93.43.0

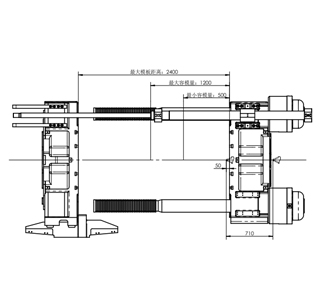

Front dimensions of the template
Formwork side dimensions

		U1100TSDK
Internationally recognized model		671.4				891.2				1160.3
Injection device
Screw diameter	mm	90	100	110	120	100	110	120	130	110	120	130	1400
Theoretical injection capacity	cm³	2957	3650	4417	5256	4239	5129	6104	7164	5651	6725	7893	9154
Shot weight(PS)	g	2691	3322	4019	4783	3858	4668	5555	6519	5143	6120	7183	8330
Shot weight(PS)	oz	94	117	141	168	135	164	195	229	180	214	252	292
Injection pressure	MPa	227	184	152	128	210	174	146	125	205	172	147	126
Screw ratio		24.4	22	20	18.3	24.2	22	20.2	18.6	24	22	20.3	18.9
Injection rate	cm³/s	585	723	875	1041	759	918	1093	1283	911	1084	1272	1476
Injection piston speed	mm/s	92.2				96.7				95.6
Injection stroke	mm	465				540				595
Max screw speed	r/min	109				111				103
Electric heating power	KW	70				90				97
Number of heating zones in the material barrel		6+1				7+1				7+1
Locking device
Clamping force	KN	10000/11000
Mold opening force	KN	875
Platen dimension	mmxmm	1840x1740
Space between tie bar	mmxmm	1280x1180
Bulk modulus		500-1200
Opening stroke	mm	1900
Max distance Platen	mm	2400
Ejector force forward	KN	274
Ejector stroke	mm	360
Number of ejector bar	PC	25
System
Sys Pressure	Mpa	16/25				16/25				16/25
Pump Motor	KW	43+43				34+34+34				43+43+34
Fuel tank capacity	L	1000				1200				1400
Maximum weight of mold	T	19				19				19
Overall weight	T	41+11				41+12				40+14
Overall size	M	10.93.43.0				10.93.43.0				11.93.43.0
Front dimensions of the template
Formwork side dimensions

		U1300TSDK
Internationally recognized model		891.2				1160.3				1441.9
Injection device
Screw diameter	mm	100	110	120	130	110	120	130	140	120	130	140	150
Theoretical injection capacity	cm³	4239	5129	6104	7164	5651	6725	7893	9154	7460	8755	10154	11657
Shot weight(PS)	g	3858	4668	5555	6519	5143	6120	7183	8330	6789	7967	9240	10608
Shot weight(PS)	oz	135	164	195	229	180	214	252	292	238	279	324	372
Injection pressure	MPa	210	174	146	125	205	172	147	126	193	164	142	123
Screw ratio		24.2	22	20.2	18.6	24	22	20.3	18.9	23.8	22	20.4	19.1
Injection rate	cm³/s	759	918	1093	1283	911	1084	1272	1476	1244	1460	1694	1944
Injection piston speed	mm/s	96.7				95.6				110.0
Injection stroke	mm	540				595				660
Max Screw speed	r/min	111				103				90
Electric heating power	KW	90				97				118
Number of heating zones in the material barrel		7+1				7+1				8+1
Locking device
Clamping force	KN	13000/14500
Mold opening force	KN	1230
Platen dimension	mmxmm	2250x1950
Space between tie bar	mmxmm	1540x1280
Bulk modulus		690-1460
Opening stroke	mm	2410
Max distance Platen	mm	3100
Ejector force forward	KN	300
Ejector stroke	mm	380
Number of ejector bar	PC	25
System
Sys Pressure	Mpa	16/25				16/25				16/25
Pump Motor	KW	34+34+34				43+43+34				34+34+43+43
Fuel tank capacity	L	1200				1400				1800
Maximum weight of mold	T	30				30				30
Overall weight	T	58+13				58+14				58+23
Overall size	M	11.83.83.5				11.83.83.5				12.83.83.5

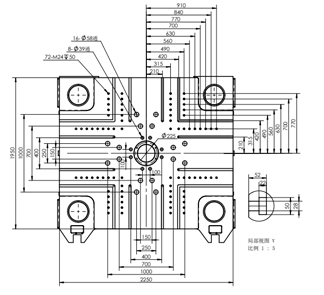

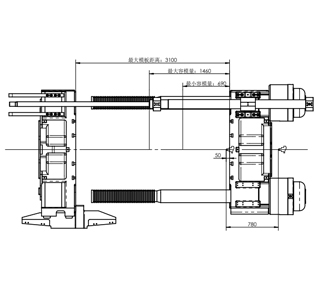

Front dimensions of the template
Formwork side dimensions

		U1450TSDK
Internationally recognized model		891.2				1160.3				1441.9
Injection device
Screw diameter	mm	100	110	120	130	110	120	130	140	120	130	140	150
Theoretical injection capacity	cm³	4239	5129	6104	7164	5651	6725	7893	9154	7460	8755	10154	11657
Shot weight(PS)	g	3858	4668	5555	6519	5143	6120	7183	8330	6789	7967	9240	10608
Shot weight(PS)	oz	135	164	195	229	180	214	252	292	238	279	324	372
Injection pressure	MPa	210	174	146	125	205	172	147	126	193	164	142	123
Screw ratio		24.2	22	20.2	18.6	24	22	20.3	18.9	23.8	22	20.4	19.1
Injection rate	cm³/s	759	918	1093	1283	911	1084	1272	1476	1244	1460	1694	1944
Injection piston speed	mm/s	96.7				95.6				110.0
Injection stroke	mm	540				595				660
Max Screw speed	r/min	111				103				90
Electric heating power	KW	90				97				118
Number of heating zones in the material barrel		7+1				7+1				8+1
Locking device
Clamping force	KN	13000/14500
Mold opening force	KN	1230
Platen dimension	mmxmm	2250x1950
Space between tie bar	mmxmm	1540x1280
Bulk modulus		690-1460
Opening stroke	mm	2410
Max distance Platen	mm	3100
Ejector force forward	KN	300
Ejector stroke	mm	380
Number of ejector bar	PC	25
System
Sys Pressure	Mpa	16/25				16/25				16/25
Pump Motor	KW	34+34+34				43+43+34				34+34+43+43
Fuel tank capacity	L	1200				1400				1800
Maximum weight of mold	T	30				30				30
Overall weight	T	58+13				58+14				58+23
Overall size	M	11.83.83.5				11.83.83.5				12.83.83.5
Front dimensions of the template
Formwork side dimensions

		U1700TSDK
Internationally recognized model		1160.3				1441.9				1542.4
Injection device
Screw diameter	mm	110	120	130	140	120	130	140	150	130	140	150	160
Theoretical injection capacity	cm³	5651	6725	7893	9154	7460	8755	10154	11657	9419	10924	12540	14268
Shot weight(PS)	g	5143	6120	7183	8330	6789	7967	9240	10608	8571	9940	11411	12984
Shot weight(PS)	oz	180	214	252	292	238	279	324	372	300	348	400	455
Injection pressure	MPa	205	172	147	126	193	164	142	123	164	142	123	108
Screw ratio		24	22	20.3	18.9	23.8	22	20.4	19.1	23.7	22	20.5	19.3
Injection rate	cm³/s	911	1084	1272	1476	1244	1460	1694	1944	1460	1694	1944	2212
Injection piston speed	mm/s	95.6				110.0				110.0
Injection stroke	mm	595				660				710
Max Screw speed	r/min	103				90				90
Electric heating power	KW	97				118				118
Number of heating zones in the material barrel		7+1				8+1				8+1
Locking device
Clamping force	KN	17000/18500
Mold opening force	KN	1380
Platen dimension	mmxmm	2600x2150
Space between tie bar	mmxmm	1870x1425
Bulk modulus		750-1650
Opening stroke	mm	2700
Max distance Platen	mm	3450
Ejector force forward	KN	300
Ejector stroke	mm	400
Number of ejector bar	PC	33
System
Sys Pressure	Mpa	16/25				16/25				16/25
Pump Motor	KW	43+43+34				34+34+43+43				34+34+43+43
Fuel tank capacity	L	1400				1800				1800
Maximum weight of mold	T	44				44				44
Overall weight	T	74+14				74+23				74+28
Overall size	M	12.44.23.5				13.44.23.5				13.44.23.5

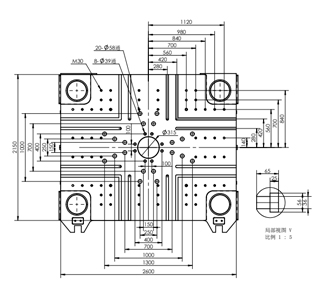

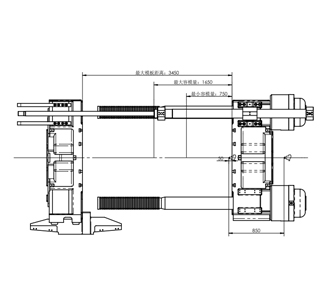

Front dimensions of the template
Formwork side dimensions

		U1850TSDK
Internationally recognized model		1160.3				1441.9				1542.4
Injection device
Screw diameter	mm	110	120	130	140	120	130	140	150	130	140	150	160
Theoretical injection capacity	cm³	5651	6725	7893	9154	7460	8755	10154	11657	9419	10924	12540	14268
Shot weight(PS)	g	5143	6120	7183	8330	6789	7967	9240	10608	8571	9940	11411	12984
Shot weight(PS)	oz	180	214	252	292	238	279	324	372	300	348	400	455
Injection pressure	MPa	205	172	147	126	193	164	142	123	164	142	123	108
Screw ratio		24	22	20.3	18.9	23.8	22	20.4	19.1	23.7	22	20.5	19.3
Injection rate	cm³/s	911	1084	1272	1476	1244	1460	1694	1944	1460	1694	1944	2212
Injection piston speed	mm/s	95.6				110.0				110.0
Injection stroke	mm	595				660				710
Max Screw speed	r/min	103				90				90
Electric heating power	KW	97				118				118
Number of heating zones in the material barrel		7+1				8+1				8+1
Locking device
Clamping force	KN	17000/18500
Mold opening force	KN	1380
Platen dimension	mmxmm	2600x2150
Space between tie bar	mmxmm	1870x1425
Bulk modulus		750-1650
Opening stroke	mm	2700
Max distance Platen	mm	3450
Ejector force forward	KN	300
Ejector stroke	mm	400
Number of ejector bar	PC	33
System
Sys Pressure	Mpa	16/25				16/25				16/25
Pump Motor	KW	43+43+34				34+34+43+43				34+34+43+43
Fuel tank capacity	L	1400				1800				1800
Maximum weight of mold	T	44				44				44
Overall weight	T	74+14				74+23				74+28
Overall size	M	12.44.23.5				13.44.23.5				13.44.23.5
Front dimensions of the template
Formwork side dimensions

		U2000TSDK
Internationally recognized model		1542.4				2087.1				3774.6
Injection device
Screw diameter	mm	130	140	150	160	150	160	170	180	170	180	190	200
Theoretical injection capacity	cm³	9419	10924	12540	14268	1413	16076	18149	20347	20417	22890	25504	28260
Shot weight(PS)	g	8571	9940	11411	12984	12858	14629	16515	18516	18580	20830	23209	25716
Shot weight(PS)	oz	300	348	400	455	451	513	579	649	651	760	814	902
Injection pressure	MPa	164	142	123	108	148	130	115	103	184	164	148	133
Screw ratio		23.7	22	20.5	19.3	23.5	22	20.7	19.5	23.3	22	20.8	19.8
Injection rate	cm³/s	1460	1694	1944	2212	1802	2051	2315	2596	2098	2352	2621	2904
Injection piston speed	mm/s	110.0				102.0				92.5
Injection stroke	mm	710				800				900
Max screw speed	r/min	90				76				100
Electric heating power	KW	118				160				180
Number of heating zones in the material barrel		8+1				11+1				14+1
Locking device
Clamping force	KN	20000/22000
Mold opening force	KN	1880
Platen dimension	mmxmm	2850x2400
Space between tie bar	mmxmm	2020x1620
Bulk modulus		750-1810
Opening stroke	mm	3060
Max distance Platen	mm	3810
Ejector force forward	KN	460
Ejector stroke	mm	430
Number of ejector bar	PC	25
System
Sys Pressure	Mpa	16/25				16/25				16/25
Pump Motor	KW	34+34+43+43				43X4				52*4
Fuel tank capacity	L	1800				2000				3000
Maximum weight of mold	T	58				58				58
Overall weight	T	95+15				95+23				95+24
Overall size	M	13.34.23.8				13.34.23.8				14.94.23.8
Front dimensions of the template
Formwork side dimensions

		U2200TSDK
Internationally recognized model		1542.4				2087.1				3774.6
Injection device
Screw diameter	mm	130	140	150	160	150	160	170	180	170	180	190	200
Theoretical injection capacity	cm³	9419	10924	12540	14268	1413	16076	18149	20347	20417	22890	25504	28260
Shot weight(PS)	g	8571	9940	11411	12984	12858	14629	16515	18516	18580	20830	23209	25716
Shot weight(PS)	oz	300	348	400	455	451	513	579	649	651	760	814	902
Injection pressure	MPa	164	142	123	108	148	130	115	103	184	164	148	133
Screw ratio		23.7	22	20.5	19.3	23.5	22	20.7	19.5	23.3	22	20.8	19.8
Injection rate	cm³/s	1460	1694	1944	2212	1802	2051	2315	2596	2098	2352	2621	2904
Injection piston speed	mm/s	110.0				102.0				92.5
Injection stroke	mm	710				800				900
Max screw speed	r/min	90				76				100
Electric heating power	KW	118				160				180
Number of heating zones in the material barrel		8+1				11+1				14+1
Locking device
Clamping force	KN	20000/22000
Mold opening force	KN	1880
Platen dimension	mmxmm	2850x2400
Space between tie bar	mmxmm	2020x1620
Bulk modulus		750-1810
Opening stroke	mm	3060
Max distance Platen	mm	3810
Ejector force forward	KN	460
Ejector stroke	mm	430
Number of ejector bar	PC	25
System
Sys Pressure	Mpa	16/25				16/25				16/25
Pump Motor	KW	34+34+43+43				43X4				52*4
Fuel tank capacity	L	1800				2000				3000
Maximum weight of mold	T	58				58				58
Overall weight	T	95+15				95+23				95+24
Overall size	M	13.34.23.8				13.34.23.8				14.94.23.8
Front dimensions of the template
Formwork side dimensions

		U2700TSDK
Internationally recognized model		2087.1				3774.6				4211.5
Injection device
Screw diameter	mm	150	160	170	180	170	180	190	200	170	185	200	210
Theoretical injection capacity	cm³	1413	16076	18149	20347	20417	22890	25504	28260	20985	24851	29045	32022
Shot weight(PS)	g	12858	14629	16515	18516	18580	20830	23209	25716	19096	22615	26341	29140
Shot weight(PS)	oz	451	513	579	649	651	760	814	902	670	793	927	1022
Injection pressure	MPa	148	130	115	103	184	164	148	133	200	169	145	131
Screw ratio		23.5	22	20.7	19.5	23.3	22	20.8	19.8	23.9	22	20.3	19.4
Injection rate	cm³/s	1802	2051	2315	2596	2098	2352	2621	2904	1930	2286	2671	2945
Injection piston speed	mm/s	102.0				92.5				85.0
Injection stroke	mm	800				900				925
Max screw speed	r/min	76				100				100
Electric heating power	KW	160				180				180
Number of heating zones in the material barrel		11+1				14+1				14+1
Locking device
Clamping force	KN	27000/29000
Mold opening force	KN	2200
Platen dimension	mmxmm	3000x2600
Space between tie bar	mmxmm	2180x1755
Bulk modulus		790-2010
Opening stroke	mm	3110
Max distance Platen	mm	3900
Ejector force forward	KN	460
Ejector stroke	mm	500
Number of ejector bar	PC	33
System
Sys Pressure	Mpa	16/25				16/25				16/25
Pump Motor	KW	43X4				52*4				52*4
Fuel tank capacity	L	2000				3000				3000
Maximum weight of mold	T	73				73				73
Overall weight	T	113+23				114+24				115+32
Overall size	M	15.34.53.9				16.34.53.9				16.34.53.9

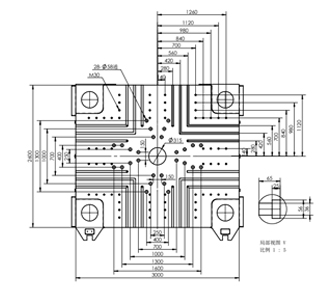

Front dimensions of the template

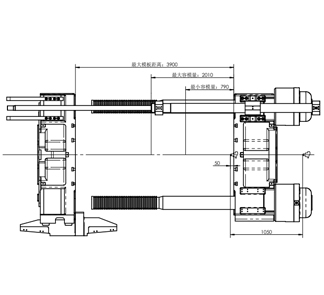

Formwork side dimensions

		U2900TSDK
Internationally recognized model		2087.1				3774.6				4211.5
Injection device
Screw diameter	mm	150	160	170	180	170	180	190	200	170	185	200	210
Theoretical injection capacity	cm³	1413	16076	18149	20347	20417	22890	25504	28260	20985	24851	29045	32022
Shot weight(PS)	g	12858	14629	16515	18516	18580	20830	23209	25716	19096	22615	26341	29140
Shot weight(PS)	oz	451	513	579	649	651	760	814	902	670	793	927	1022
Injection pressure	MPa	148	130	115	103	184	164	148	133	200	169	145	131
Screw ratio		23.5	22	20.7	19.5	23.3	22	20.8	19.8	23.9	22	20.3	19.4
Injection rate	cm³/s	1802	2051	2315	2596	2098	2352	2621	2904	1930	2286	2671	2945
Injection piston speed	mm/s	102.0				92.5				85.0
Injection stroke	mm	800				900				925
Max screw speed	r/min	76				100				100
Electric heating power	KW	160				180				180
Number of heating zones in the material barrel		11+1				14+1				14+1
Locking device
Clamping force	KN	27000/29000
Mold opening force	KN	2200
Platen dimension	mmxmm	3000x2600
Space between tie bar	mmxmm	2180x1755
Bulk modulus		790-2010
Opening stroke	mm	3110
Max distance Platen	mm	3900
Ejector force forward	KN	460
Ejector stroke	mm	500
Number of ejector bar	PC	33
System
Sys Pressure	Mpa	16/25				16/25				16/25
Pump Motor	KW	43X4				52*4				52*4
Fuel tank capacity	L	2000				3000				3000
Maximum weight of mold	T	73				73				73
Overall weight	T	113+23				114+24				115+32
Overall size	M	15.34.53.9				16.34.53.9				16.34.53.9
Front dimensions of the template
Formwork side dimensions
